AMPROAD Portable Power Station

EPIC Series 300/500/1000Wh

This product is a portable multi-functional power source that can store energy, and it is equipped with high-efficiency power lithium-ion battery, safe lithium battery management system (BMS), high-efficiency energy conversion circuit, and it is wrapped by high-strength aluminum alloy. After being repeatedly tested and verified for a long time by R&D team of our company, the product has obtained international certifications such as CE\FCC\ROHS\PSE\UN38.3. The top design and mature production control, the products are safe and reliable, which can be powered by solar power, vehicle power generation, and electric supply charging. The product features light weight, small volume and high power, which can provide customers with convenient mobile energy.

Main features:

1. Solar energy MPPT Charging system (Maximum Power Point Tracking)

2. AC/Wall charge, automatic Adaptive Adapter for Electric Charging

3. Car charging

4. USB-C TYPE-C PD60W charging

5. AC/Wall charge, Charger for GX20 port with 200w fast charge (Optional accessories)

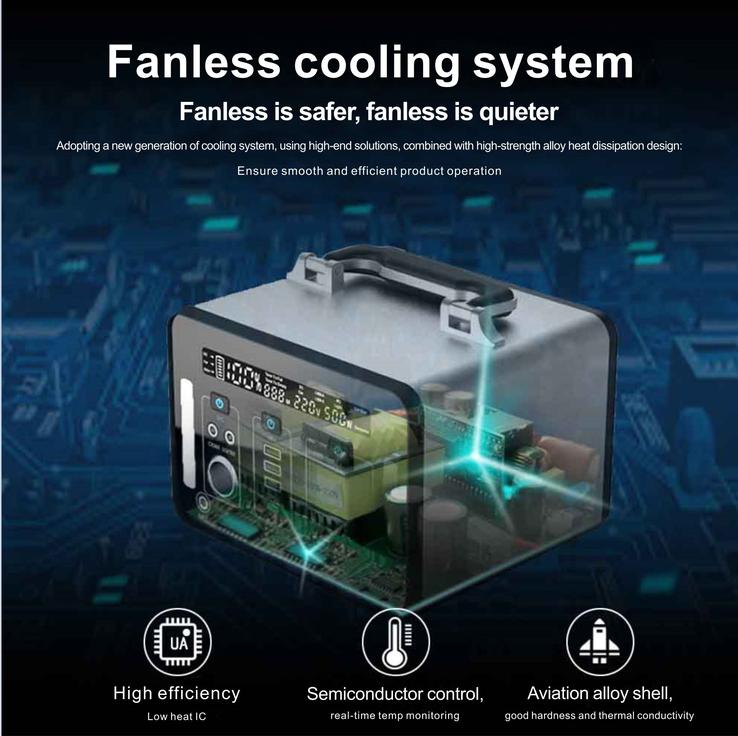

6. Fanless cooling design，noise free，dust proof and safe

7. LED High-brightness Display Screen（Real-time power, power, remaining time, etc.）

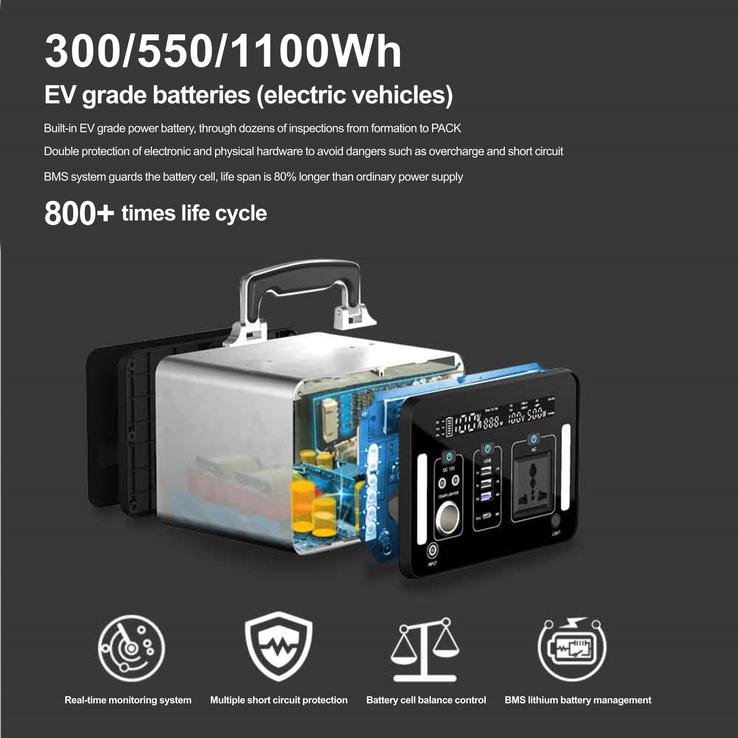

8. BMS Multilevel protection system

9. Ultra-long cycle life, 800 + cycles

Products can meet the demand of power supply for most household appliances, such as rice cookers, mini- refrigerators, speakers, televisions, mobile phones, computers, digital cameras, tablet PC, LED lights, emergency lights, outdoor lighting, outdoor construction, electric tools, pumps, medical equipment, etc. It includes a wide range of applications, such as rescue and relief work, emergency rescue, first aid, excavation, decoration, construction, tourism, camping, solar power generation and other fields.

Technical parameters:

Model No. Epic 300 Epic 500 Epic 1000

Battery class Lithium ion battery

Battery power 299.52Wh 500.24Wh 1038.96Wh

Total capacity 83200mAh 135200mAh 280800mAh

Voltage 14.8V

Ampere-hour 20.24Ah 37.16Ah 74.32Ah

Cycle life 800 cycles

BMS protection: Over voltage, under voltage, high and low temperature, three-stage over current, short circuit protection

Output voltage: 100-120V or 220V-240V (depending on the factory settings in different countries and regions)

Output frequency: 50Hz or 60Hz（Manual switching）

Net weight 4.6KG 6.0KG 11.0KG

Gross weight 6.5KG 8.0KG 13.5KG

Host 192*219*192mm 192*219*192mm 192*303*192mm

Packing 310*287*317mm 310*287*317mm 405*300*325mm

Temperature Charge 0-45℃（32~113℉）

Discharge -10~50℃（-4~112℉）

Storage -20~45℃（-4~113℉）
